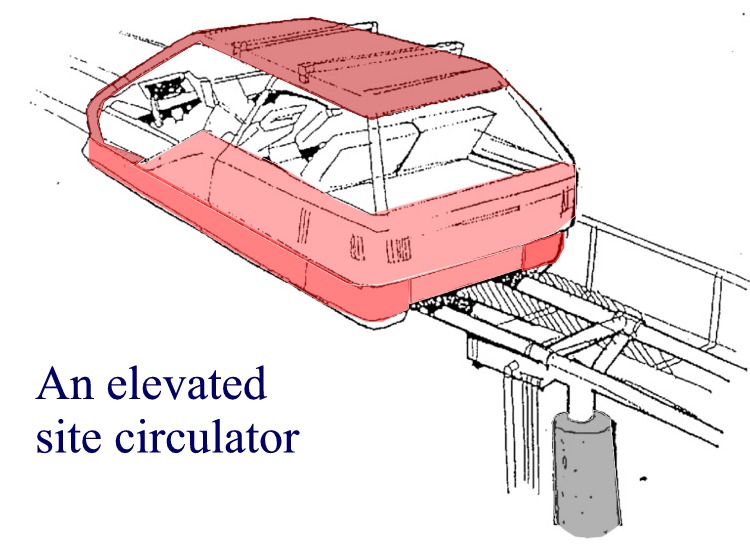

This is a 4 passenger system that runs on a
very light weight steel elevated track similar to the modern roller
coaster tracks. It can operate independently on a small site such as a
mall, office parks, hospitals or campus. It can also be used to connect
remote buildings with the Skyways stations. It is automated (driverless
and uses a moving switch where necessary. It is slow from 10mph to 30
mph and can go around sharp corners such as a street or between
buildings.
|
|
|
|
|
The SkyHawk runs on a rotary electric motor that
drives 2 horizontal pinch wheels for traction as shown to the
left. The vertical wheels hold it firmly to the track like a roller
coaster. It can be open air with doors or it can be enclosed.
|
|
|
|
|
Dimensions are approximately 12' long and
less than 6' wide making SkyHawk the smallest vehicle in our family of
products.
|
|
|
|
|
Because of the slow speeds, SkyHawk can use a
mechanical switch which takes only 15 or so seconds to activate. This
can be used in maintenance bays to save room
|
|
|
|
|
This vehicle can use a smart card to active
the car and go to a selected destination. Click on image at left for
more info.
|
|
|
|
|
|
|
|
